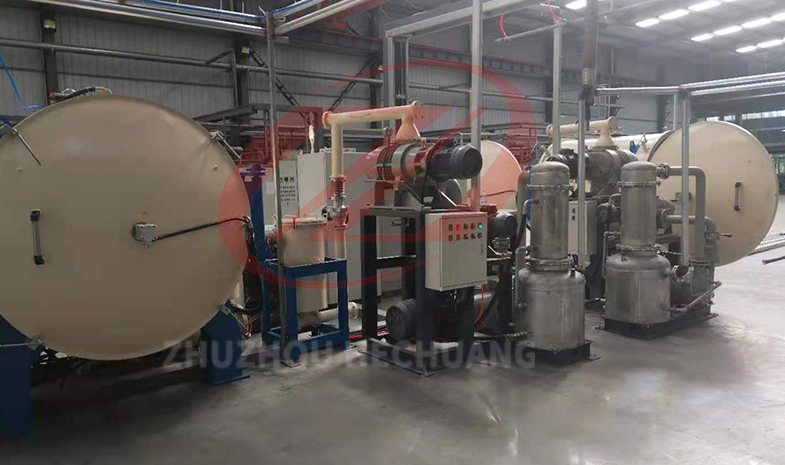

High temperature vacuum sintering furnace is a special chemical equipment used for high temperature sintering of materials. It is a necessary equipment to heat the raw materials to a certain temperature to make them undergo chemical reactions or physical changes.

Main features of production type high temperature vacuum sintering furnace:

1. Long-term stable use temperature up to 2500℃.

2. Good temperature uniformity under high temperature state, suitable for high performance ceramics and powder metallurgy industries with high requirements for shrinkage size and product density.

3. Debonding and sintering integrated molding shortens the production cycle of the product. The equipment is equipped with a screw pump unit or oil ring pump unit with automatic cleaning function.

Application range:

High temperature vacuum sintering furnace is suitable for: pressureless sintering of boron carbide ceramics, pressureless sintering of silicon carbide ceramics, sintering of recrystallized silicon carbide ceramics, sintering of aluminum nitride ceramics, sintering of high performance ceramic substrates, sintering of precision ceramics with high requirements for the consistency of shrinkage size and finished product density, sintering of powder metallurgy or other high temperature vacuum sintering of metal materials and non-metal materials.

Product advantages:

1. High degree of automation, one-button replacement (vacuuming in the furnace, argon gas flushing process), automatic monitoring of water, electricity and gas throughout the operation process, touch screen simulation can observe the equipment operation status at any time, equipment alarm indication, temperature rise curve, and power on and off operation can all be viewed and operated on the touch screen.

2. Real materials, the furnace body is made of 304 stainless steel, strictly built in accordance with the pressure vessel standards, with good corrosion resistance and airtightness. The insulation materials are all made of high-purity graphite felt, which is durable. All electrical components are reliable brands at home and abroad, and the operation is reliable.

3. High safety, the furnace body is equipped with an automatic explosion-proof valve, which is safe and reliable. The flow switch is installed separately in the sensor part to monitor the water flow in real time. The power supply strictly and effectively sets the overcurrent value and overvoltage value as required.

4. The high-temperature vacuum sintering furnace equipment can be equipped with a special circulating water cooling system for medium-frequency power supply and a protective gas purification device. The special circulating water cooling system for medium-frequency power supply can effectively reduce and eliminate equipment failures caused by cooling water quality problems, and ensure long-term normal production of equipment. The protective gas purification device can provide the purity of the protective gas, so that the insulation material in the furnace can extend its service life. Reduce customer costs

5. All series of High-temperature vacuum sintering furnaces can realize the dewaxing and sintering of products, which greatly shortens the production cycle of products.

6. The equipment integrated monitoring interface can be remotely monitored on the PC side. Managers can observe the equipment operation status at any time and retrieve the equipment operation records and process parameters.

7. The perfect after-sales team ensures that customers have no worries in the later use process.
