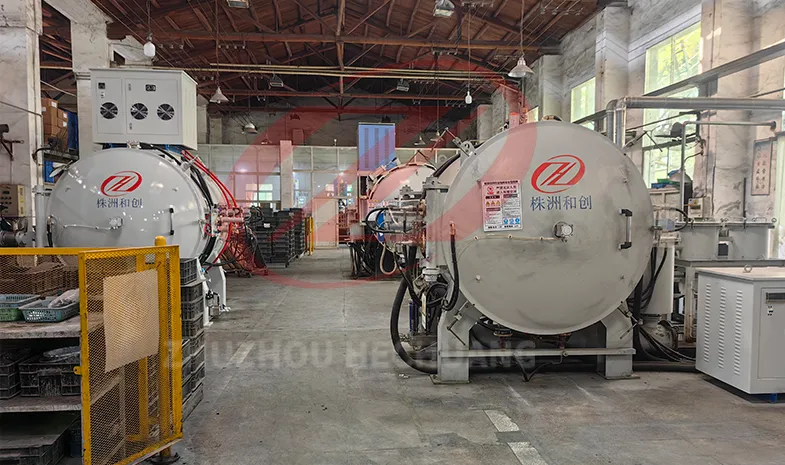

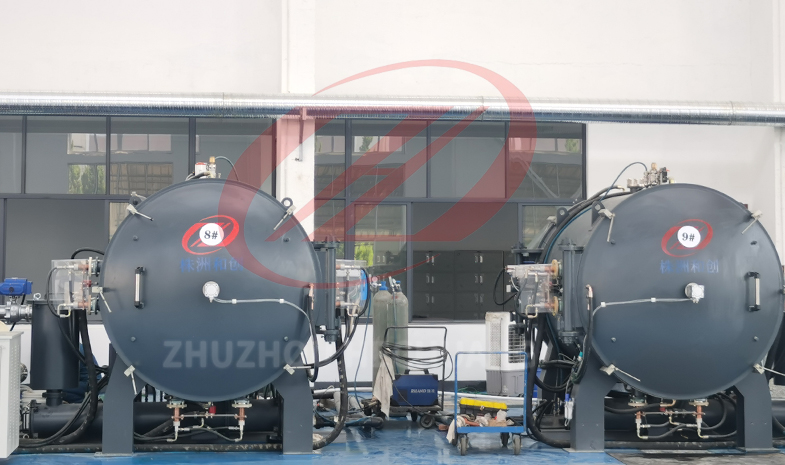

Silicon carbide ceramic pressureless sintering is mainly used for the sintering of composite ceramic materials in an oxygen-free micro-positive pressure environment. In view of the atmospheric pressure sintering environment and process characteristics of silicon carbide, we have redeveloped a new heating connection method and insulation structure, which can well adapt to the working conditions of pressureless sintering.

Silicon carbide sintering furnaces are mainly used in cemented carbide and powder metallurgy industries to produce various sizes of tungsten carbide powder, titanium carbide powder, vanadium carbide powder and other metal powders and composite metal powders.

Product Features:

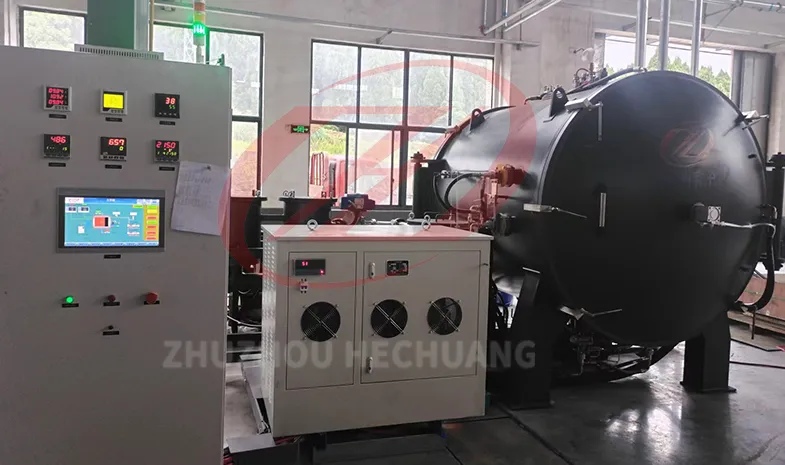

1.High degree of automation. One - click replacement (the process of evacuating the furnace and filling with argon gas) can be achieved. During the operation, water, electricity, and gas are automatically monitored throughout the process. The operation status of the equipment can be observed at any time through touch - screen simulation. Equipment alarm indication, heating curves, startup and shutdown operations can all be viewed and operated on the touch screen.

2.High - quality materials. the furnace body is entirely made of 304 stainless steel, fabricated in strict accordance with the pressure vessel standard, with good corrosion resistance and airtight performance. The insulation materials are all made of high - purity graphite felt, which is durable. All electrical components adopt reliable domestic and foreign brands, ensuring reliable operation.

3.High safety. The furnace body is equipped with an automatic explosion - proof valve, which is safe and reliable. A flow switch is separately installed on the inductor part to monitor the water flow in real - time. The power supply strictly and effectively sets the over - current value and over - voltage value as required.

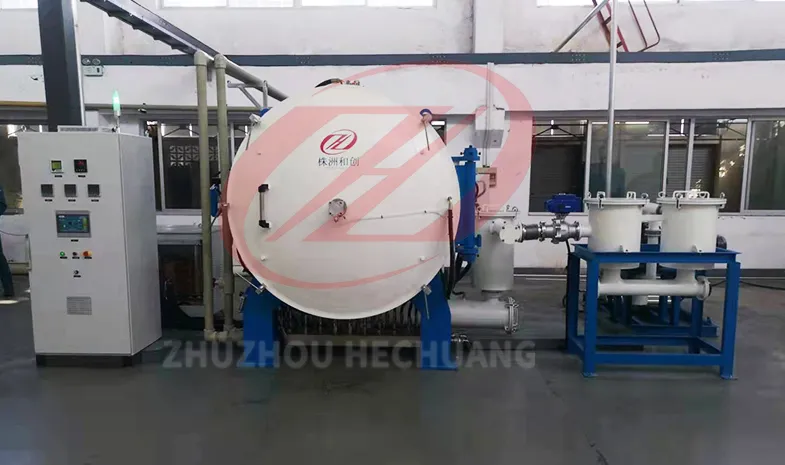

4.The equipment can be optionally equipped with a special circulating water cooling system for the medium - frequency power supply and a protective gas purification device. The special circulating water cooling system for the medium - frequency power supply can effectively reduce and eliminate equipment failures caused by cooling water quality problems, ensuring the long - term normal production of the equipment. The protective gas purification device can improve the purity of the protective gas, extend the service life of the insulation materials in the furnace, and reduce customer costs.

5.All series of products of the high - temperature vacuum sintering furnace can achieve integrated product dewaxing and sintering, greatly shortening the product production cycle.

Application range:

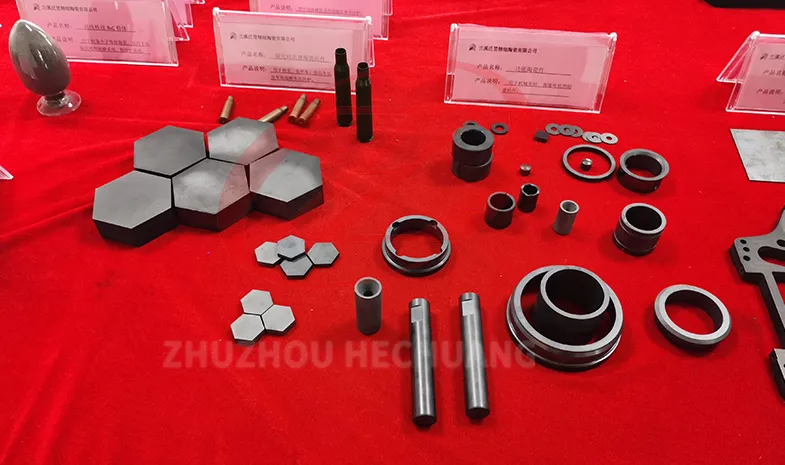

Pressureless silicon carbide sintering furnace is suitable for: mainly used in the pressureless sintering field of emerging composite ceramic silicon carbide such as silicon carbide sealing rings, heat exchange tubes, sleeves and shaft tubes, nozzles, impellers and bulletproof products.

FAQ：

Q1: What is the typical temperature range for SiC sintering?

A1: Most SiC sintering processes occur between 1800°C and 2500°C, depending on the material composition and sintering method .

Q2: How does vacuum sintering benefit SiC production?

A2: Vacuum environments eliminate oxidation and reduce contamination, critical for producing high-purity SiC ceramics used in semiconductors. Vacuum sintering also allows for lower sintering temperatures compared to atmospheric processes.
