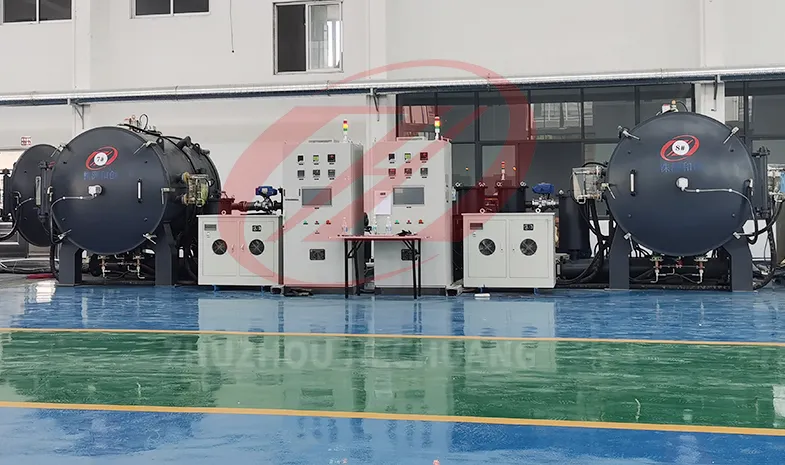

The Silicon carbide sintering furnace is an intermittent induction heating furnace. It is used for reaction sintering, pressureless sintering, recrystallization sintering, and hot isostatic pressing sintering of SiC ceramic products. It can also be used for the sintering of other ceramic products such as silicon nitride. The maximum temperature of this equipment can reach 2400°C. It is equipped with a debinding and dust removal system, enabling the debinding and sintering process to be completed in one step.

The silicon carbide sintering furnace is mainly used in the cemented carbide and powder metallurgy industries to produce various particle - sized metal powders such as tungsten carbide powder, titanium carbide powder, vanadium carbide powder, and composite metal powders.

Application Scope:

The silicon carbide sintering furnace is applicable to: pressureless sintering of boron carbide ceramics, pressureless sintering of silicon carbide ceramics, recrystallization sintering of silicon carbide ceramics, sintering of aluminum nitride ceramics, sintering of high - performance ceramic substrates, sintering of precision ceramics with high requirements for shrinkage size and product density consistency, powder metallurgy Sintering, or high - temperature vacuum sintering of other metal and non - metal materials.

Product Features of the Silicon carbide sintering Furnace:

1.High degree of automation. One - click replacement (the process of evacuating the furnace and filling with argon gas) can be achieved. During the operation, water, electricity, and gas are automatically monitored throughout the process. The operation status of the equipment can be observed at any time through touch - screen simulation. Equipment alarm indication, heating curves, startup and shutdown operations can all be viewed and operated on the touch screen.

2.High - quality materials. The furnace body is entirely made of 304 stainless steel, fabricated in strict accordance with the pressure vessel standard, with good corrosion resistance and airtight performance. The insulation materials are all made of high - purity graphite felt, which is durable. All electrical components adopt reliable domestic and foreign brands, ensuring reliable operation.

3.High safety. The furnace body is equipped with an automatic explosion - proof valve, which is safe and reliable. A flow switch is separately installed on the inductor part to monitor the water flow in real - time. The power supply strictly and effectively sets the over - current value and over - voltage value as required.

4.The equipment can be optionally equipped with a special circulating water cooling system for the medium - frequency power supply and a protective gas purification device. The special circulating water cooling system for the medium - frequency power supply can effectively reduce and eliminate equipment failures caused by cooling water quality problems, ensuring the long - term normal production of the equipment. The protective gas purification device can improve the purity of the protective gas, extend the service life of the insulation materials in the furnace, and reduce customer costs.

5.All series of products of the high - temperature vacuum sintering furnace can achieve integrated product dewaxing and sintering, greatly shortening the product production cycle.
