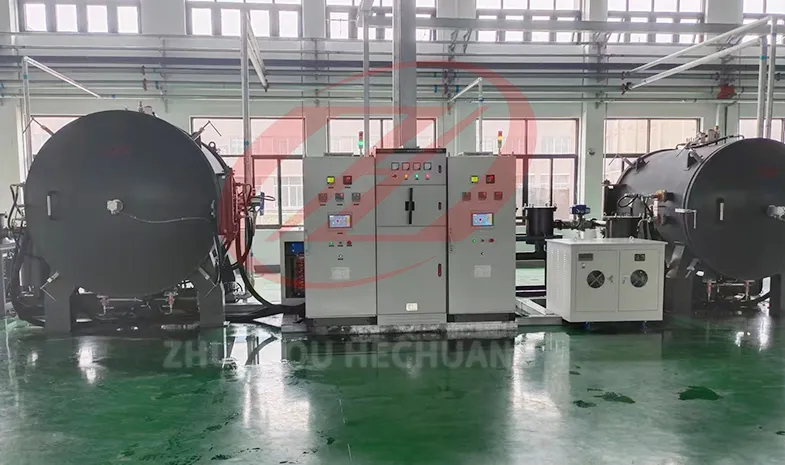

The silicon carbide ceramic sintering furnace is a batch-type induction heating furnace designed for reaction sintering, pressureless sintering, recrystallization sintering, and hot isostatic pressing (HIP) sintering of SiC ceramic products. It is also suitable for sintering other ceramic materials, such as silicon nitride, and can achieve a maximum temperature of 2400°C. Equipped with a debinding and dust removal system, it enables integrated debinding and sintering processes in a single operation.

Primary Applications:

The silicon carbide ceramic sintering furnace is widely used in the hard alloy and powder metallurgy industries for producing various metal and composite powders, including tungsten carbide (WC), titanium carbide (TiC), vanadium carbide (VC), and other metal powders.

Scope of Application:

Pressureless sintering of boron carbide (B₄C) and silicon carbide (SiC) ceramics.

Recrystallized silicon carbide (R-SiC) ceramic sintering.

Aluminum nitride (AlN) ceramic sintering.

High-performance ceramic substrate sintering.

precision ceramic sintering requiring strict dimensional shrinkage and uniform density.

powder metallurgy Sintering or high-temperature vacuum sintering of other metallic and non-metallic materials.

Product Features:

1. High Automation:

One-touch automatic gas purging (vacuum evacuation and argon charging).

Real-time monitoring of water, gas, and power via touchscreen interface.

Visual display of operational status, alarm indicators, heating curves, and startup/shutdown controls.

2. Premium Materials:

Furnace body constructed from 304 stainless steel, compliant with pressure vessel standards for superior corrosion resistance and airtightness.

High-purity graphite felts for insulation, ensuring durability.

Reliable electrical components from reputable domestic and international brands.

3. Enhanced Safety:

Automatic explosion-proof valves integrated into the furnace structure.

Flow switches on induction coils for real-time water-cooling monitoring.

Precisely configured overcurrent and overvoltage protection for the power supply.

4. Optional Configurations:

Dedicated circulating water cooling system for medium-frequency power supplies, minimizing equipment downtime caused by water quality issues.

Gas purification unit to enhance protective gas purity, prolonging furnace insulation lifespan and reducing operational costs.

5. Integrated Process Efficiency:

All high-temperature vacuum sintering furnace models support combined debinding and sintering, significantly shortening production cycles.

FAQ：

1. Q: Why does Silicon carbide sintering require such high temperatures and special atmospheres?

A: SiC is a strong covalent-bond compound with low atomic diffusion rates, making densification difficult. High temperatures (>2000°C) are necessary to provide sufficient energy to drive mass transport. Simultaneously, SiC is highly susceptible to oxidation in air at high temperatures, forming SiO₂ and CO/CO₂, which degrades material properties. Sintering must therefore occur in oxygen-free or low-oxygen environments (vacuum or inert/reducing atmospheres).

2. Q: What are the main differences between Pressureless Sintering, Hot Pressing (HP), Gas Pressure Sintering (GPS), and Spark Plasma Sintering (SPS)?

A:Pressureless Sintering: Densification relies solely on high temperature and sintering aids under vacuum or atmosphere. Equipment is relatively simpler, suitable for complex shapes and mass production, but density and performance are usually slightly lower than pressure-assisted methods.

Hot Pressing (HP): Uniaxial mechanical pressure (tens of MPa) is applied simultaneously with high temperature. Significantly promotes densification, lowers sintering temperature, inhibits grain growth, yielding higher density and performance. Suitable for high-strength parts or lab research. Equipment complex; product shapes limited (usually simple blocks).

Gas Pressure Sintering (GPS): High-pressure inert gas (e.g., Ar, up to 10-100 MPa) is introduced into the furnace chamber at high temperature. Gas pressure acts uniformly on all sample surfaces, effectively closing internal pores, particularly beneficial for eliminating final residual closed porosity. Can handle larger or more complex shapes.

Spark Plasma Sintering (SPS) / Field Assisted Sintering Technology (FAST): Strong pulsed direct current is passed through the powder, utilizing Joule heating and possible plasma activation effects for rapid heating (up to hundreds °C/min) and sintering under pressure. Extremely fast heating/cooling effectively supp
